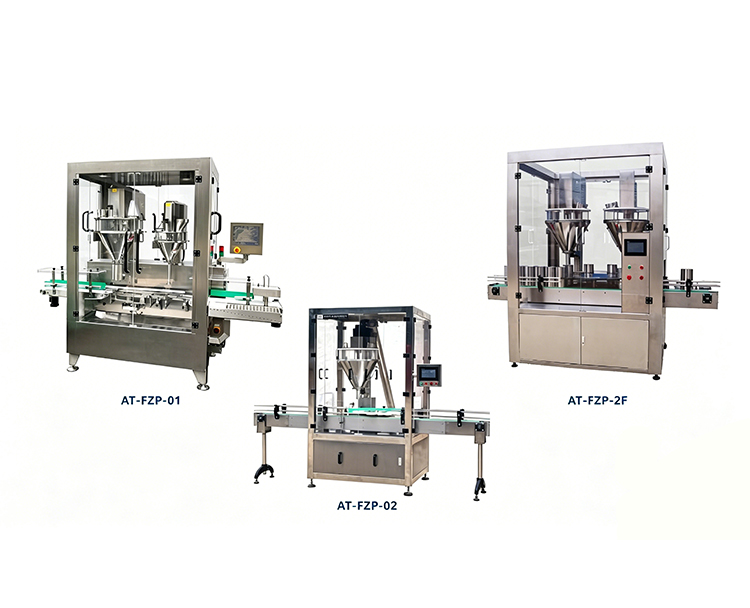

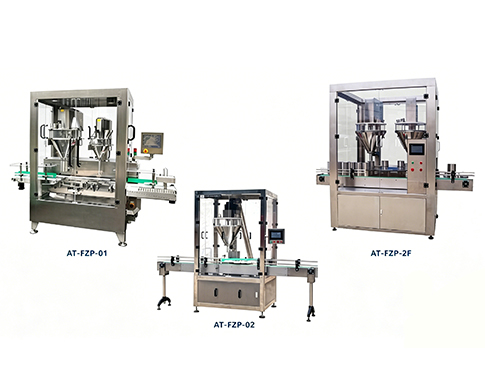

Description: Using rotary table positioning container
Application: This equipment is a new generation filling machine independently developed by our company in accordance with the latest national GMP standards. Built with cutting-edge technology and featuring a scientifically designed structure, the equipment can automatically complete the entire process of filling, metering, and discharging, and is suitable for packaging various powdery materials such as milk powder, monosodium glutamate, and flour.
This equipment is a new generation filling machine independently developed by our company in accordance with the latest national GMP standards. Built with cutting-edge technology and featuring a scientifically designed structure, the equipment can automatically complete the entire process of filling, metering, and discharging, and is suitable for packaging various powdery materials such as milk powder, monosodium glutamate, and flour.
1. The entire machine is made of stainless steel, fully compliant with GMP standards.
2. LCD touchscreen, easy to operate; packaging weight can be adjusted at any time, and working status can be switched at any time, making operation convenient
3. Servo motors are used for filling, offering advantages such as high precision, high speed, large torque, adjustable speed, stable operation, and durability.
4. Online weighing feedback ensures high-precision, high-speed online filling based on material specific gravity.
5. Fully sealed, airtight glass and stainless steel hopper allows for clear visibility of stationary materials, preventing dust leakage. A dust extraction device is equipped at the filling port to protect the workshop environment.
6. Side-opening hopper door for easy cleaning, eliminating cleaning dead corners, and convenient replacement of screw connections.
|
Measuring method |
Auger filling |
|
Tank size |
Diameter φ50-180mm, height 50-350mm |
|
Filling range |
10-2000g |
|
Filling speed |
0-35 cans / min |
|
Power |
Three-phase 380V (or single-phase 220V),3.5kw |
|
Machine weight |
1000kg |
|
Container size |
Diameter 50--180mm, height 50--350mm |
|
Machine dimension |
3330 × 1400 × 2400mm |
|
Hopper volume |
50L,50L |
